RAIL Is Designed Compact & Sturdy to Handle Large Cable Drum Rollers

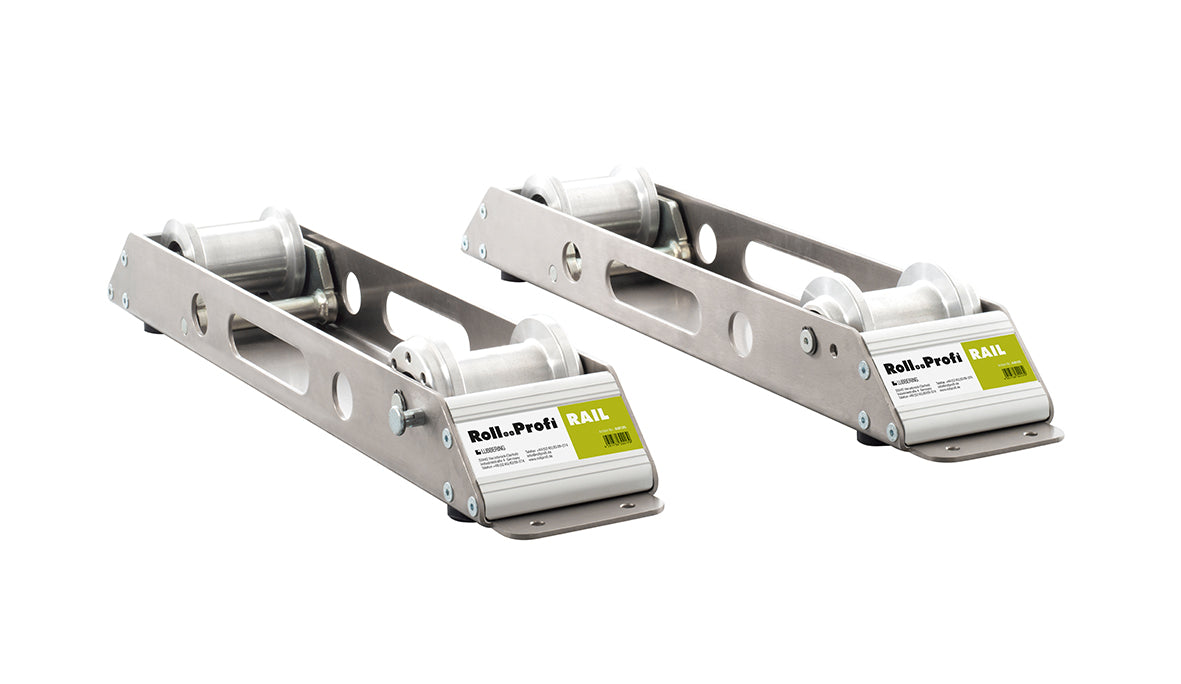

RAIL is the compact and efficient cable roller for drums from 19 in (50 cm) to 55 in (140 cm) diameter, a super reliable unwinding tool for heavy cable products.
- Two separate rails are equipped with high-quality supporting rollers running in sealed steel ball bearings.
- The rollers can be swiveled into two different positions depending upon drum size.
Easy to Use!

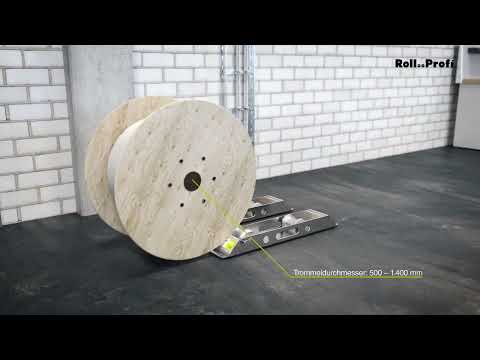

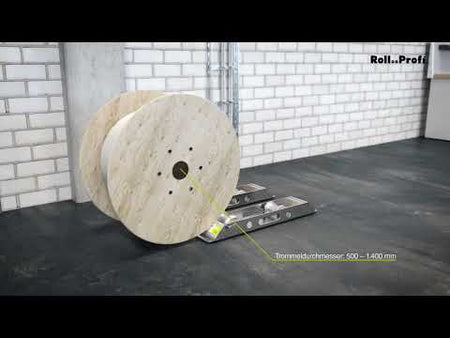

- Position the two unwinding rails parallel to each other in front of the drum flanges.

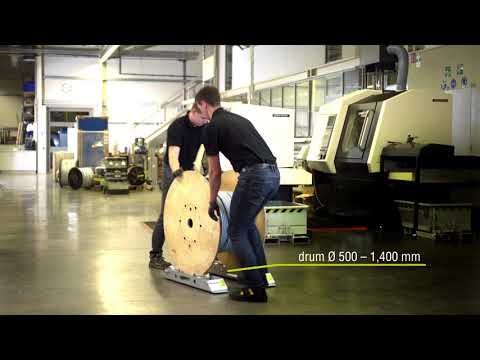

- Roll the drum over the ramp on to the RAIL.
- Remove the cable drum by locking the respective supporting roller and rolling the drum out of the RAIL.
Technical Data:
For large cable drums with max. drum Ø: 55 in // 1.4 m
Total load-bearing capacity: 3,300 lb // 1,500 kg,
Capacity for wooden drums without reinforcing steel ring: 1,540 lb // 700 kg
Dimensions (W x L x H): 6.3 x 35.5 x 4.7 in // 160 x 903 x 120 mm
Weight for each element: 19.8 lb // 9 kg
Part: A90105-US
All Rollprofi Caddy products are fabricated in Germany of heavy gauge aluminum and stainless steel, and machined to the highest quality standards in our facilities.
