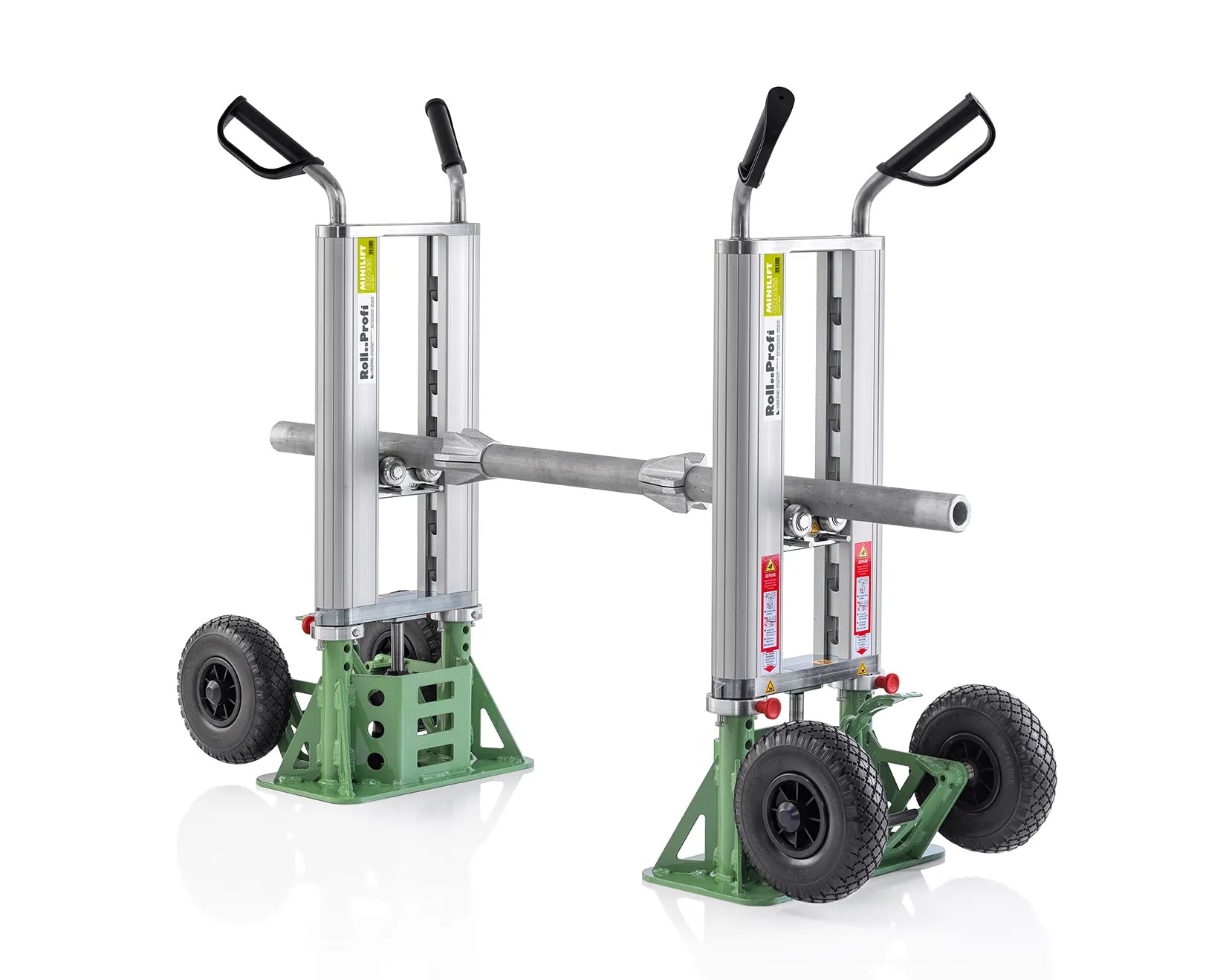

Rollprofi MINILIFT Cross Cable Lift Jack
Couldn't load pickup availability
Powerful Hydraulic Cable Drum Lifting Jack Up to 4.4 Tons
The MINILIFT Cross updates the popular MINILIFT with larger wheels and handles for faster handling, particularly on uneven ground on construction sites. It's innovative design ensures risk-free handling of all large cable drums up to a weight of 4.4 tons.
Highlights:
- Unwind heavy drums up to 8,800 lb // 4,000 kg
- For in-door warehouse or outdoor worksite
- Safe and ergonomic handling
- Maintenance-free indoor or outdoor use on-site
- Built for maximum stability with solid steel frame
- Wheeled for added drum mobility
- Heavy-duty all-metal design ensures maximum durability
- Innovative system provides for maximum functionality
Easy to Use!
- Start by fixing the cable drum onto the drum axle using the centering cones
- Place the side elements of the MINILIFT next to the cable drum

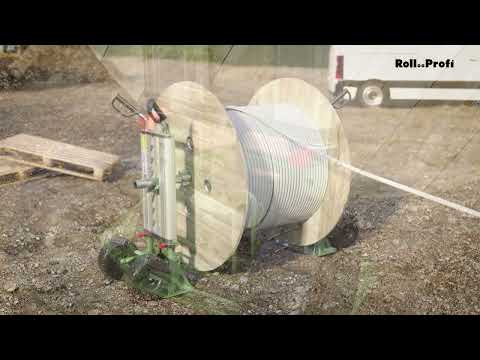

- Adjust the mounting block to the height of the drum axle and secure it with the locking bolts (see video)
- By simply pumping, hydraulically lift the cable drum
- Secure the drum with the locking bolts
- Now ready to unwind!
Technical Data:
For heavy cable drums
Load-bearing capacity 8,800 lb // 4,000 kg
Max. cable drum Ø: 62 in // 1.6 m
Drum axle length: 59 in // 1.5 m
Weight per side lifting element: 88 lb // 40 kg
Shipping weight: 292 lb // 133 kg
Part: A90130-US
Shipping:
Lift jacks are pallet-shipped given their weight. We require a shipping address to estimate shipping costs. Please email your info to inquiry@cabblecaddy.com.
All Rollprofi Caddy products are fabricated in Germany of heavy gauge aluminum and stainless steel, and machined to the highest quality standards in our facilities.
For orders in the Americas & Canada email us!
