Home » Rollprofi JUMBOLIFT CROSS
Rollprofi

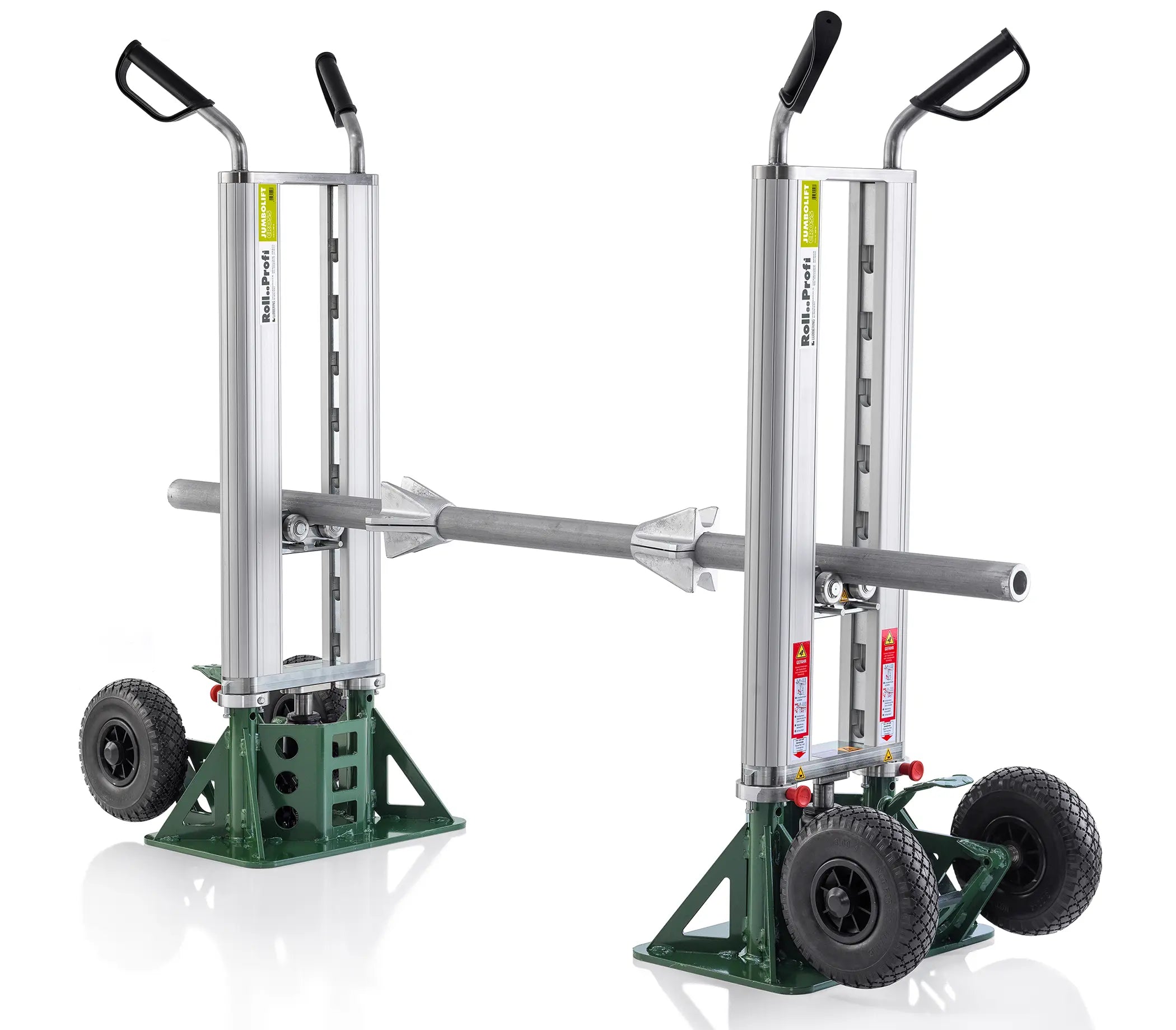

Rollprofi JUMBOLIFT CROSS

Only 1 left
SKU: A90140-US
For Heavy Reels | 13,300 lb
$6,986.99
Rollprofi
SKU: A90140-US
Heavy-duty
Pallet-shipped. Email for quote. Discounts on 6 or more. Reseller inquiries welcome!

Powerful, wheeled hydraulic cable jack lifts up to 6 tons, enables safe and easy uncoiling of heavy drums wherever required. Maintenance free. Ready to use.

The Powerful Hydraulic Cable Drum Jack Lifting Up to 13,300 lbs

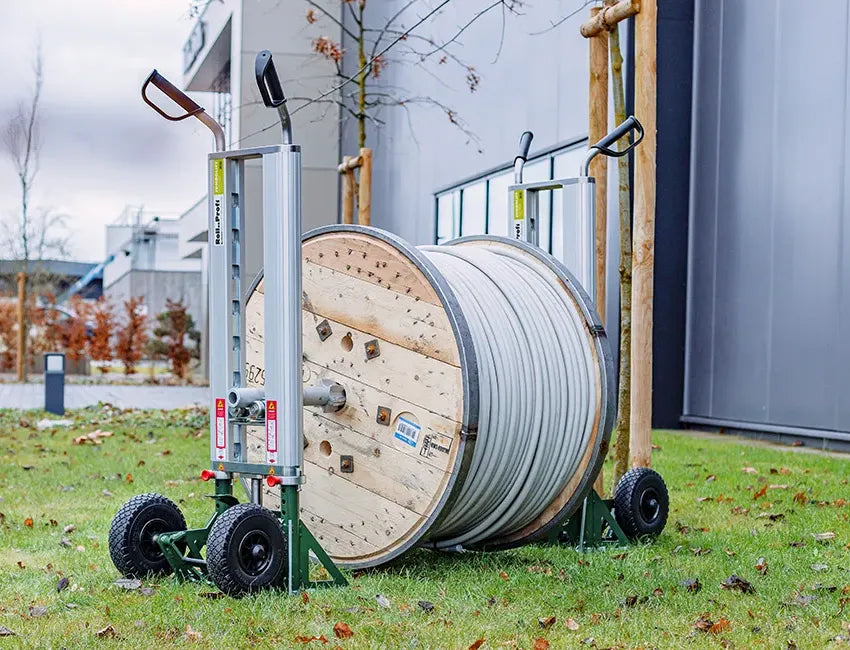

Designed for large and heavy cable drums up to 6 tons, the JUMBOLIFT CROSS represents a new generation of hydraulic cable drum lifting jacks. The innovative technology and solid aluminum plus steel construction enables safe and easy uncoiling of heavy drums, even  at construction work sites.

The JUMBOLIFT CROSS differs from the JUMBOLIFT with heavier, larger wheels and handle grips to optimize positioning on-site indoor or out. It comes ready to use.

    Highlights:

    • Unwind heavy drums up to 13,300 lbs // 6,000 kg
    • For in-door warehouse or outdoor worksite
    • Safe and ergonomic handling
    • Maintenance-free indoor or outdoor
    • Built for maximum stability with solid steel base frame
    • Smartly-designed wheel-assembly for optimum positioning
    • Heavy-duty all-metal design ensures maximum durability
    • Innovative system provides for maximum functionality

    Easy to Use!

    • At the work site, push the drum axle through the cable drum
    • Lock the drum in place with the two centering cones. (2 sizes are available)
    • Position the two lifting side elements in alignment with the drum axle
    • Adjust securing mechanisms (see video: Note the video shown is of the original JUMBOLIFT.  Functionality for lifting is the same..)
    • Lift the drum with the foot lever
    • Position the drum to unwind by setting the height locks
    • Start unreeling

    Technical Data:

    For heavy cable drums
    Load-bearing capacity 13,300 lb // 6,000 kg
    Max. cable drum Ø: 86 in // 2.2 m
    Drum axle length: 73 in // 1.5 m
    Weight per side lifting element: 168 lb // 72 kg
    Shipping Weight:  447 lb // 203 kg

    Part: A90140-US

    Shipping:
    Lift jacks are pallet-shipped given their weight. We require a shipping address to estimate shipping costs. Please email your info to inquiry@cabblecaddy.com.

    All Rollprofi Caddy products are fabricated in Germany of heavy gauge aluminum and stainless steel, and machined to the highest quality standards in our facilities.

    For orders in the Americas & Canada email us!
