Rollprofi EASYLIFT Cable Jack
Couldn't load pickup availability
Compact Hydraulic Cable Drum Jack Lifting Up 2+ Tons

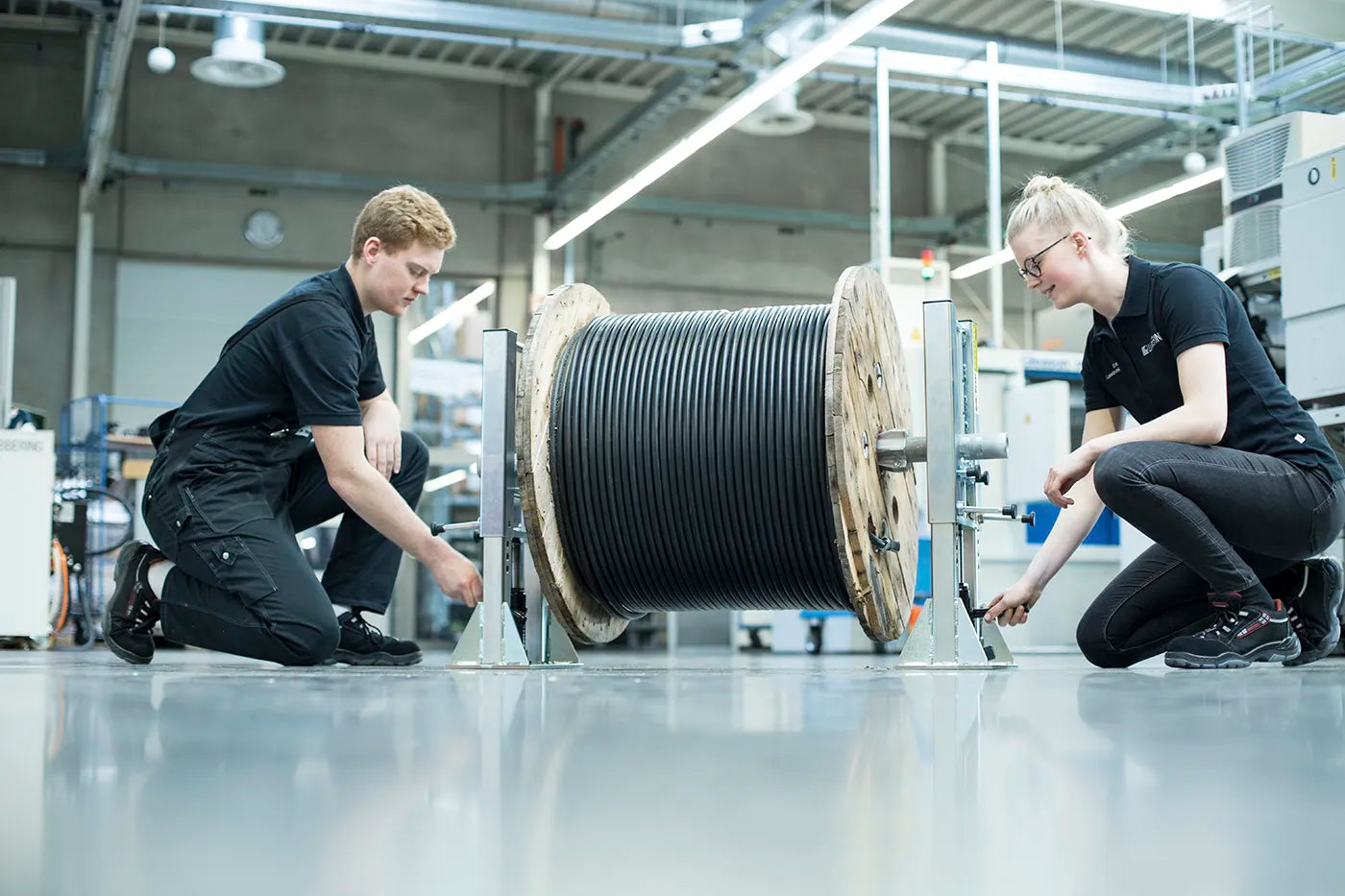

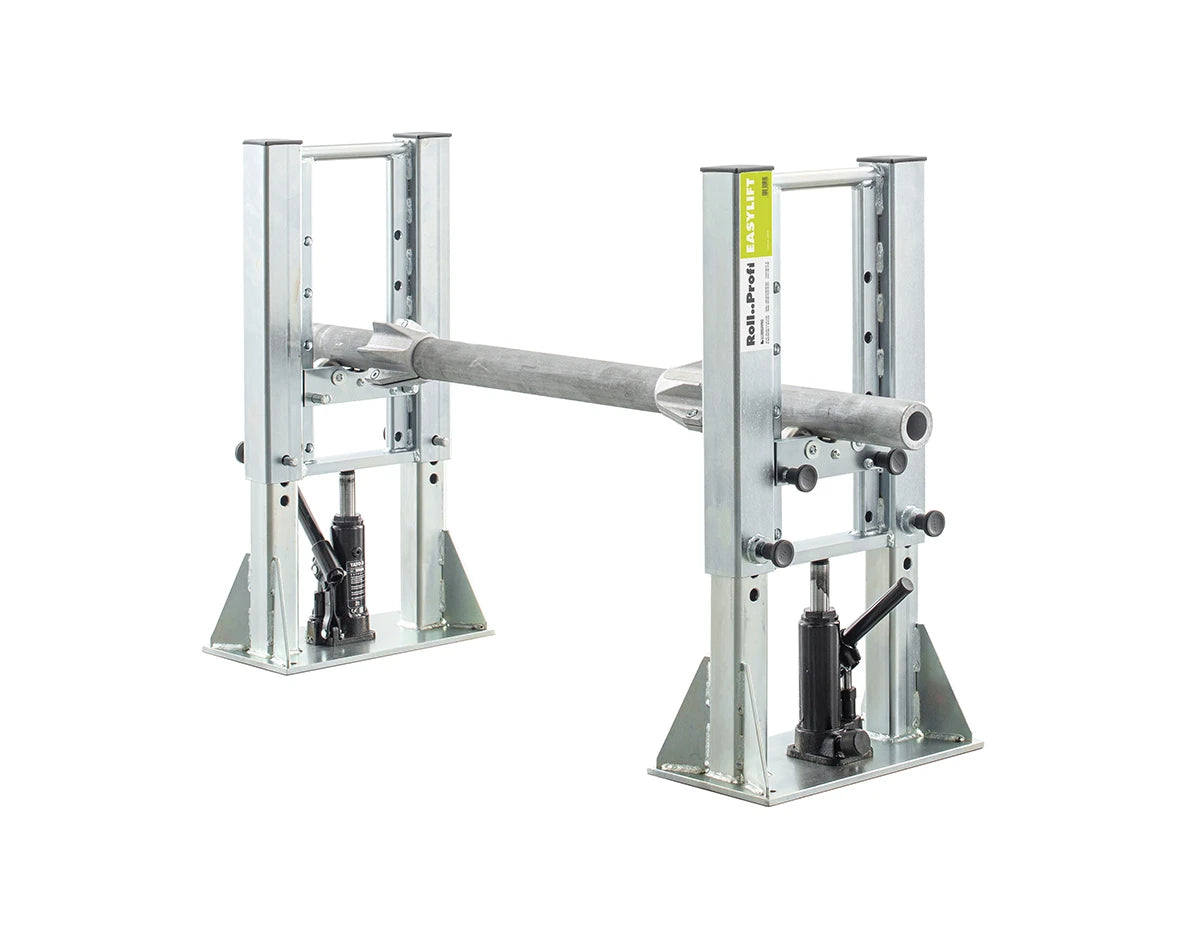

The EASYLIFT hydraulic cable drum lifting jack is the economical and ideal solution to easily handle medium-sized drums. Stable and flexibly positionable, the EASYLIFT guarantees safe handling of cable drums up to a weight of 2+ tons and 47 inches (1.20 meters) in diameter on level ground.
Highlights:
- Unwind heavy drums up to 4,400 lb // 2,000 kg
- Simple and safe lifting of heavy drums for unwinding
- Built for maximum stability with solid steel frame
- Heavy-duty all-metal design ensures maximum durability
- Designed to maximize safe and ergonomic handling of heavy drums
- Maintenance-free with moving parts secured against loss
Easy to Use!
The EASYLIFT offers the familiar easy handling of a Roll..Profi product:
- Start by fixing the cable drum onto the drum axle using the centering cones
- Place the side elements of the EASYLIFT next to the cable drum
- Adjust the mounting block to the height of the drum axle and secure it with the locking bolts (see video)
- By simply pumping, hydraulically lift the cable drum
- Secure the drum with the locking bolts
- Now ready to unwind!
Technical Data:
Max. load-bearing capacity: 4,400 lb // 2.000 kg
Max. cable reel: 47 in // 1.200 mm
Max. cable drum: 23 in // 600 mm
Dimensions: (H x D x W) 25 x 9.8 x 17.7 in // 640 x 250 x 450 mm
Length of the drum axle: 51 in // 1.350 mm
Max. wheel width: 33 in // 850 mm
Weight per side lifting element: 57 lb // 26 kg
Part: A90122-US
Shipping:
Lift jacks are pallet-shipped given their weight. We require a shipping address to estimate shipping costs. Please email your info to inquiry@cabblecaddy.com.
All Rollprofi Caddy products are fabricated in Germany of heavy gauge aluminum and stainless steel, and machined to the highest quality standards in our facilities.
For orders in the Americas & Canada email us!
