Home » FEIN ASW 18-30 PC Precision Cordless Screwdriver, Baton Shape
FEIN

FEIN ASW 18-30 PC Precision Cordless Screwdriver, Baton Shape

In stock
SKU: 71126260090
Screwdriving | Programmable | Precision
$1,809.00
FEIN
SKU: 71126260090
Discounts on 10 or more

Programmable precision cordless screwdriver with angled head and mechanical shut-off clutch for industrial use. Programmable torque: 12-30 Nm in/lbs[Nm]

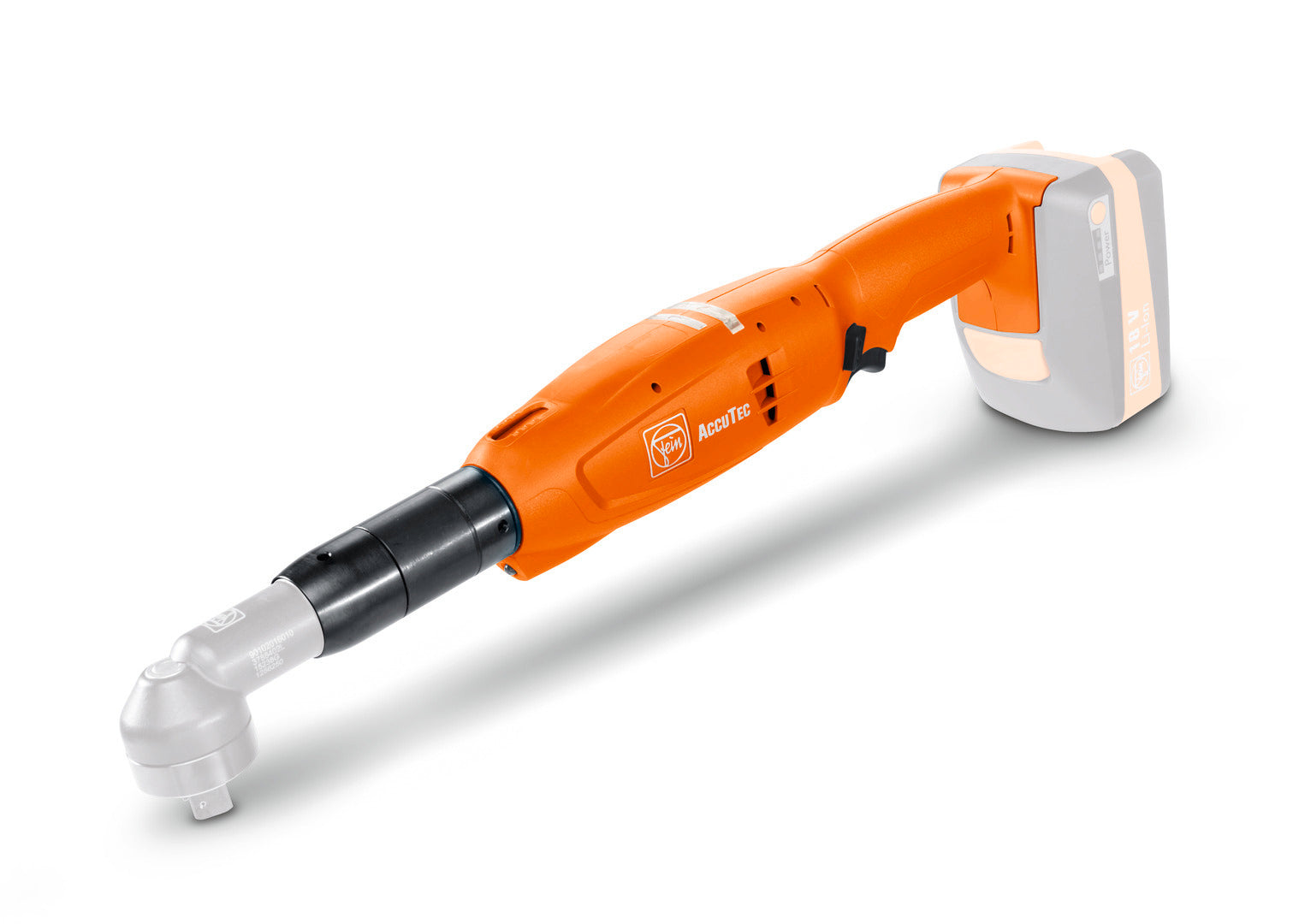

FEIN ASW 18-30 PC Precision Cordless Screwdriver, Baton Shape

The high-performance, baton shape, FEIN AccuTec ASW 18 right angled torque drivers makes fastening up to 60 Nm more reliable and efficient. Not only are the maximum torque and speed values impressive, but both values can be adjusted as needed over a large range, which ensures maximum flexibility.

12-30 Nm in/lbs[Nm] - (other models have different torque options)

Speed Range (Factory Delivered) rpm - 30 - 357 (180)

Features

  • Maximum Process Reliability - Visual and audible indication of the process result (OK/NOK) ques. BMS prevents NOK due to low battery levels.

  • Maximum Precision - ISO5393 compliant with +/- 10% accuracy guaranteed +/- 5% accuracy demonstrable with a CMK > 1.67

  • Durable and Powerful - FEIN’s PowerDrive Brushless Motor delivers class leading power and durability for 1 million+ cycles.

  • Superior Ergonomics - Class leading weight, size and balance for all day comfort

  • Thoughtful Design:

    • Multi-function LED of process results

    • Durable, precise mechanical clutch

    • No contact trigger for high cycles

    • LED worklight

  • Advanced Programming of performance including: speed, angle, time, soft start, Rehit detection, Rehit prevention, cross thread reduction, constant throttle, patented FEIN threshold strategy

Technical Data

  • Process-capable according to ISO 5393, VDI/VDE 2647, CmK value > 1.67 at ± 10% (based on 6 Sigma).

  • For soft and hard screwdriving applications.

  • Programmable parameters (up to 5 increments): speed, direction of rotation, angle of rotation, torque threshold, time.

  • Adjustable error criteria prevent manipulation of the screwdriving process.

  • Infinitely variable speed setting.

  • Forward / reverse running can be parameterized.

  • Brushless FEIN PowerDrive motor with 30% greater efficiency and life.

  • High speed stability for constant work progress.

  • Full resilience in continuous operation up to maximum drive torque.

  • Extra-short construction for use in narrow spaces.

  • Low-fatigue working with slim grip and good balance.

  • Optimized air guide: Air does not blow onto hand or in face.

  • Extra-large, bright signal unit (OK / NOK).

  • Optimal screwdriving site illumination.

  • Wear-free accelerator switch.

  • Tool color-coded via coding rings.

  • Attachment option for hanger (balancer).

  • Integrated screw counter for setting maintenance interval.

  • Tool with storage battery charging status indicator (can be set).

  • MultiVolt-interface. Cordless tool can be used with FEIN li-ion batteries (18 V).

Vibration and sound emission values

  • Sound pressure level LpA 83,4 dB

  • Measurement uncertainty of the measured value KpA 5 dB

  • Sound power level LWA 91,4 dB

  • Measurement uncertainty of the measured value KWA 5 dB

  • Peak sound value LpCpeak 97,5 dB

  • Measurement uncertainty of the measured value KpCpeak 5 dB

  • Vibration value 1 αhv 3-way αh,D 2.4 m/s²

  • Measurement uncertainty of the measured value Kα 1,5 m/s²

Includes

  • Delivery does not include battery, charger or torque wrench.
