Home » *** FEIN Cordless Hammer Drill / Driver Set | ASCM 18-4 QMP AS
FEIN

*** FEIN Cordless Hammer Drill / Driver Set | ASCM 18-4 QMP AS

In stock
SKU: 71161562090
Drilling | Tapping | Screwdriving | Driver | Impact
$665.00
FEIN
SKU: 71161562090
Discounts on 10 or more

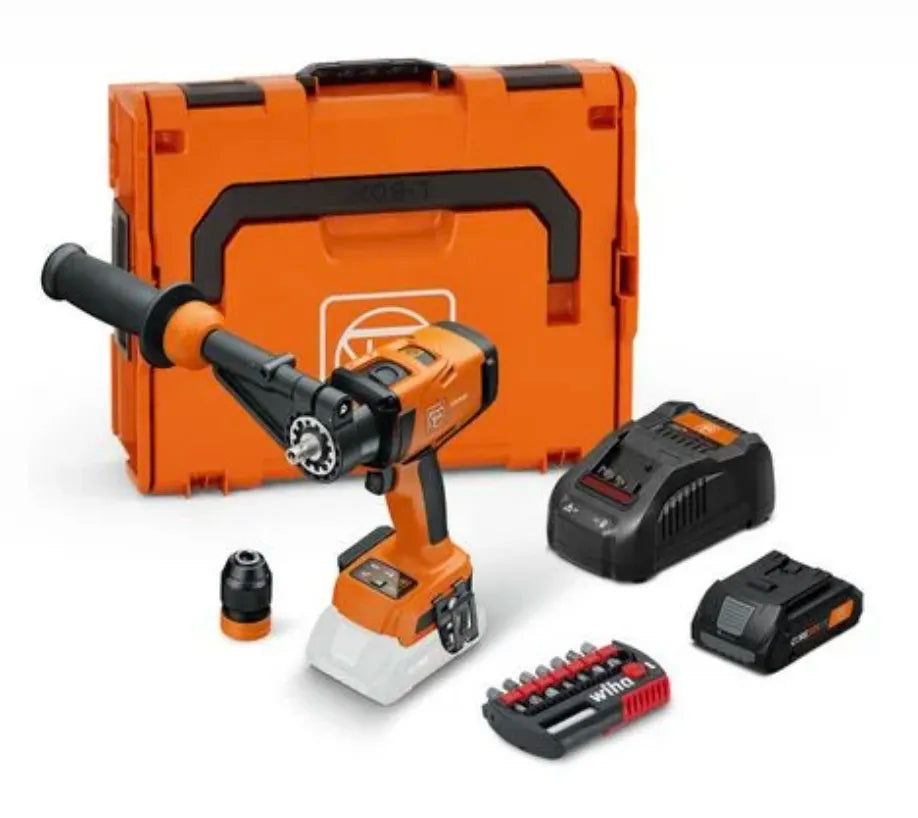

High performance, cordless drill / driver / hammer | ASCM 18-4 QMP AS with 8-piece bit set, 1 rechargeable battery (CORE 18 V 4 Ah) and quick charger (GAL 1880 CV AS)

Cordless ASCM18-4 QMP AS QuickIN Lean Top Set | Hammer Drill / Driver Set

Features

  • Removable drill chuck

  • Electronic torque-controlled shut-off

  • 4-speed gearbox

  • QuickIN accessory interface

  • Dimmable LED

  • Drilling and over screw function

Details

  • 4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16" to 3-1/8".

  • Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.

  • QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.

  • Extremely safe with kickback monitoring which stops the tool.

  • More control with the extendable auxiliary handle.

  • Selectable hammer function for drilling in stone and masonry up to 1/2".

  • The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.

  • High torque up to a maximum of 1,150 in/lb.

  • QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.

  • Electronic torque setting (15+1).

  • Intuitive control panel with dimmable LED for perfect illumination of the work area.

  • Comes with a magnetic bit holder and belt clip.

  • 8-piece bit set with bit holder and 7 bits (PZ2, PZ3, T15, T20, T25, T30, T40, 60-1/4) .

  • Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.

  • Over screw driving function to prevent screw from driving too deep into the wood.

  • Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah)

  • User safe with restart and electronic overload protection.

  • Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.

  • COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.

  • Perfectly equipped for any job with our L-BOXX system.

Technical data

  • Battery voltage 18 V

  • Battery compatibility Li-ion / CORE 18 V Li-ions

  • Battery interface 18 V AMPShare

  • Motor brushless

  • Gearbox 4-speed

  • Accessory interface QuickIN

  • No load speed 430 / 850 / 2 000 / 4 000

  • Max. torque (hard/soft) 1,151 [130] (620 [70] / 443 [50] ) in/lbs[Nm]

  • Torque steps 15 + 1

  • Chuck capacity 1/16 [1.5] - 1/2 [13] in[mm]

  • Fastening 3/8 [10] x 15-3/4 [400] in[mm]

  • Drill Ø steel twist drill 1/2 [13] in[mm]

  • Holesaw diameter capacity in wood 2-3/8 [60] in[mm]

  • Tapping 1/2"

  • Weight without battery 3.09 [1.40] lbs[kg]

Vibration and sound emission values

  • Sound pressure level LpA 93,9 dB

  • Measurement uncertainty of the measured value KpA 5 dB

  • Sound power level LWA 101,9 dB

  • Measurement uncertainty of the measured value KWA 5 dB

  • Peak sound value LpCpeak 113,4 dB

  • Measurement uncertainty of the measured value KpCpeak 3 dB

  • Vibration value 1 αhv 3-way ah,D 0,8 m/s²

  • Measurement uncertainty of the measured value Kα 1,5 m/s²

  • Vibration value 2 αhv 3-way ah 0,5 m/s²

  • Measurement uncertainty of the measured value Kα 1,5 m/s²

Includes

  • 1 ASCM 18-4 QMP AS (incl. handle, belt clip, magnetic bit holder)

  • 1 battery pack CORE 18 V 4.0 Ah AS

  • 1 rapid charger GAL 1880 CV AS

  • 1 8-piece bit set

  • 1 tool case (L-BOXX 136)
