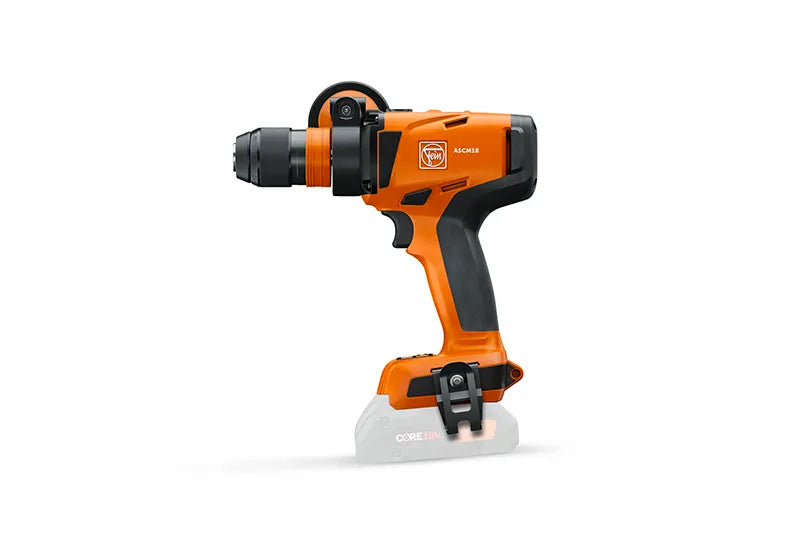

FEIN Cordless Drill / Driver | ASCM 18-4 QM AS SELECT (Bare Tool)

With brushless motor and QuickIN interface. Uncompromising power for drilling and tapping up to 1/2" and drilling with carbide hole saws up to 3-1/8".

4-speed cordless drill/driver | ASCM 18-4 QM AS (Bare Tool)

Features

• Removable drill chuck

• Electronic torque-controlled shut-off

• 4-speed gearbox

• QuickIN accessory interface

• Dimmable LED

• Drilling and over screw function

Details

• 4-speed gearbox for optimal cutting speeds in metal for holes from 1/16" to 3-1/8".

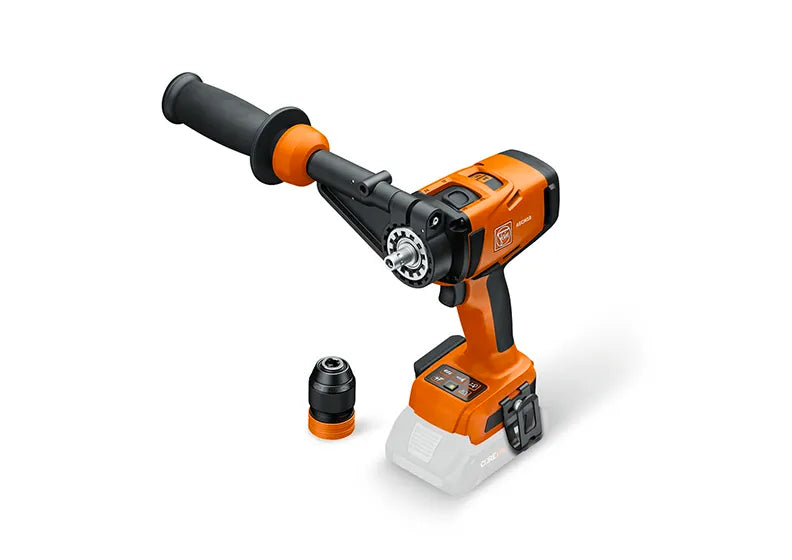

• Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.

• QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.

• Extremely safe with kickback monitoring which stops the tool.

• More control with the extendable auxiliary handle.

• The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.

• High torque up to a maximum of 1,150 in/lb.

• QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.

• Electronic torque setting (15+1).

• Intuitive control panel with dimmable LED for perfect illumination of the work area.

• Comes with a magnetic bit holder and belt clip.

• Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.

• Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah)

• User safe with restart and electronic overload protection.

• Over screw driving function to prevent screw from driving too deep into the wood.

• Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.

• COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.

• State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries.

• CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge.

• Perfectly equipped for any job with our L-BOXX system.

Technical data

• Battery voltage 18 V

• Battery compatibility Li-ion / CORE 18 V Li-ions

• Battery interface 18 V AMPShare

• Motor brushless

• Gearbox 4-speed

• Accessory interface QuickIN

• No load speed 430 / 850 / 2 000 / 4 000

• Max. torque (hard/soft) 1,151 [130] (620 [70] / 443 [50] ) in/lbs[Nm]

• Torque steps 15 + 1

• Chuck capacity 1/16 [1.5] - 1/2 [13] in[mm]

• Fastening 3/8 [10] x 15-3/4 [400] in[mm]

• Drill Ø steel twist drill 1/2 [13] in[mm]

• Holesaw diameter capacity in wood 2-3/8 [60] in[mm]

• Tapping 1/2"

• Weight without battery 2.87 [1.30] lbs[kg]

Vibration and sound emission values

• Sound pressure level LpA 75,9 dB

• Measurement uncertainty of the measured value KpA 5 dB

• Sound power level LWA 83,9 dB

• Measurement uncertainty of the measured value KWA 5 dB

• Peak sound value LpCpeak 90,6 dB

• Measurement uncertainty of the measured value KpCpeak 5 dB

• Vibration value 1 αhv 3-way ah,D 0,9 m/s²

• Measurement uncertainty of the measured value Kα 1,5 m/s²

• Vibration value 2 αhv 3-way ah 0,6 m/s²

• Measurement uncertainty of the measured value Kα 1,5 m/s²

Includes

• 1 QuickIN drill chuck 1,062 [120] in/lbs[Nm]

• 1 belt clip

• 1 magnetic bit holder

• 1 telescopic handle

• 1 tool case (L-BOXX 136)

• DOES NOT include battery.
